MIOR ROLL

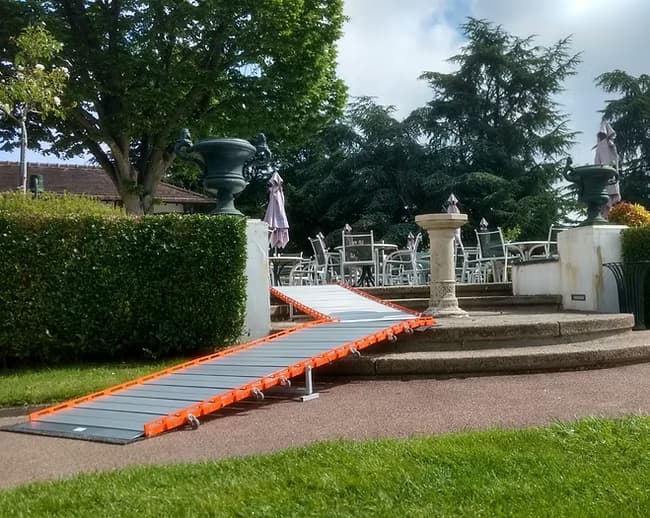

Modular roll-up wheelchair ramp for temporary access without fixing or drilling
400 kg
Capacity
~8.2 kg/m
Weight/meter
Modular — 20 cm sections
Length

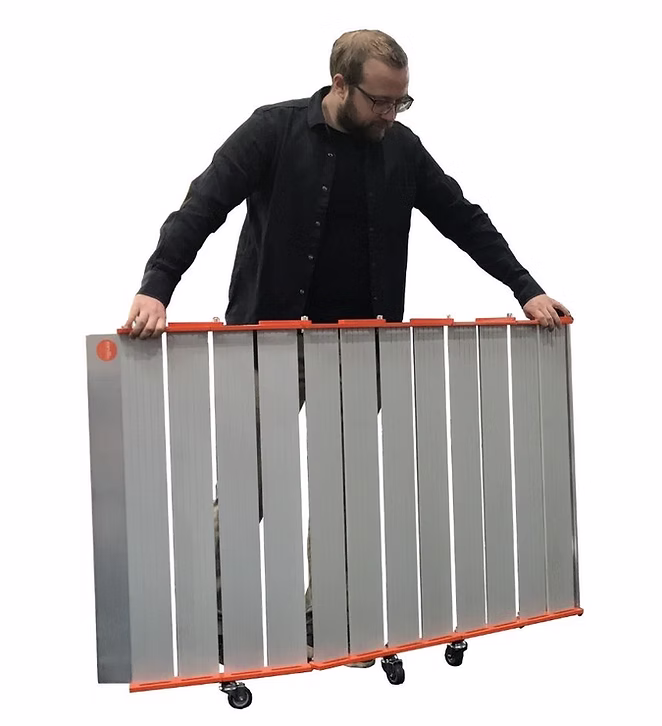

Roll-Up Construction & Modular Length
Unlike rigid folding ramps, MIOR ROLL's flexible roll-up design allows for unlimited length configurations. Each 20 cm modular section can be added or removed to match the exact elevation needed—no cutting, no guesswork. The system stores vertically, taking up minimal floor space even at lengths exceeding 3 meters.
- 6082-T6 aerospace aluminium construction
- 400 kg loading capacity
- ~8.2 kg/m weight for manual handling
- Modular 20 cm sections

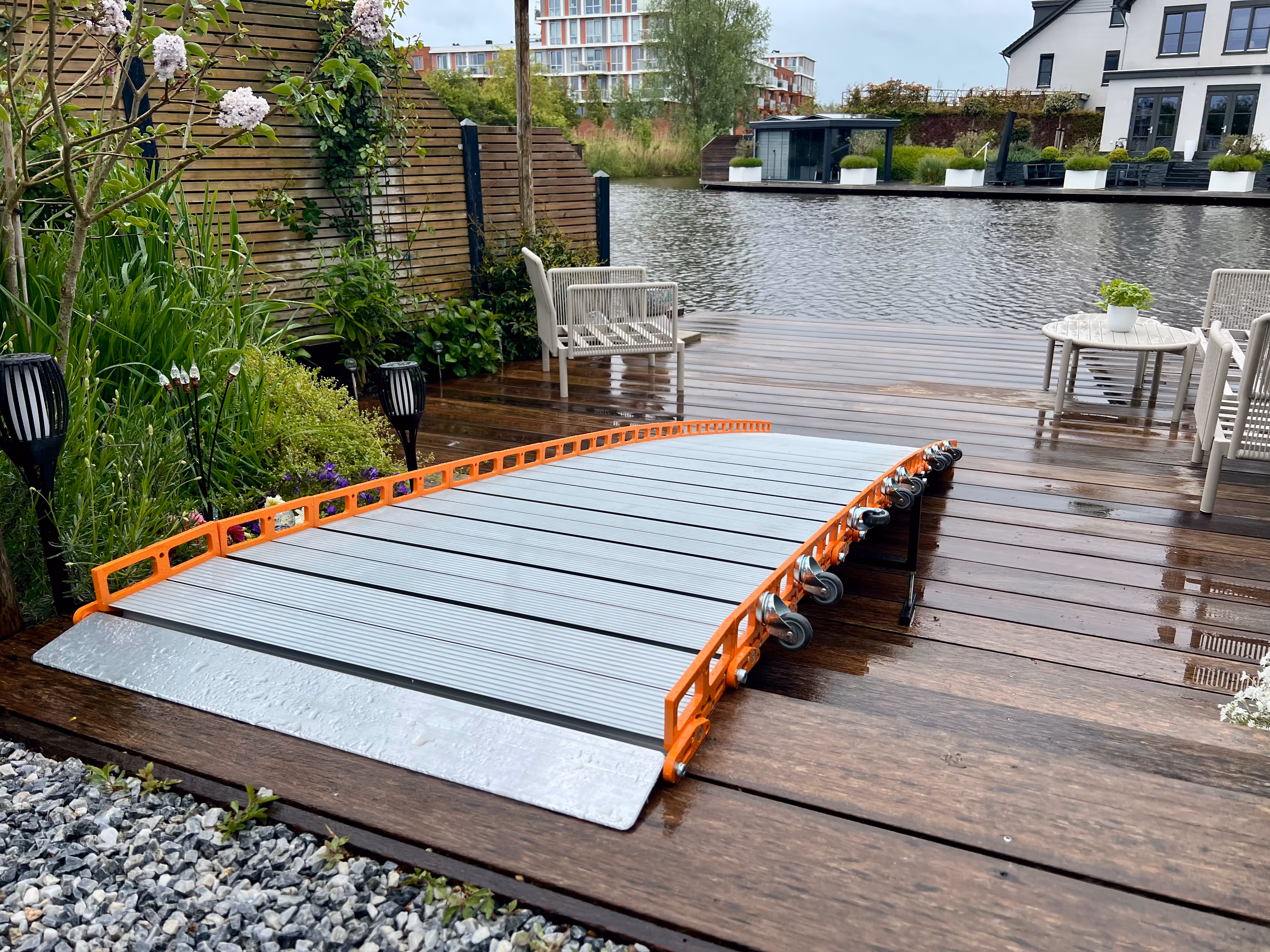

Dual-Rail Edge Safety System
Precision-engineered side borders—8 cm outer, 5.5 cm inner—create a secure channel that prevents wheelchairs from rolling off narrow surfaces. Combined with surface-milled grip patterns, the ramp performs reliably even in wet outdoor conditions. Optional height-adjustable support feet stabilize spans longer than 220 cm.
- Roll the ramp to the location
- Unroll and position the top approach plate
- Deploy — ready in seconds

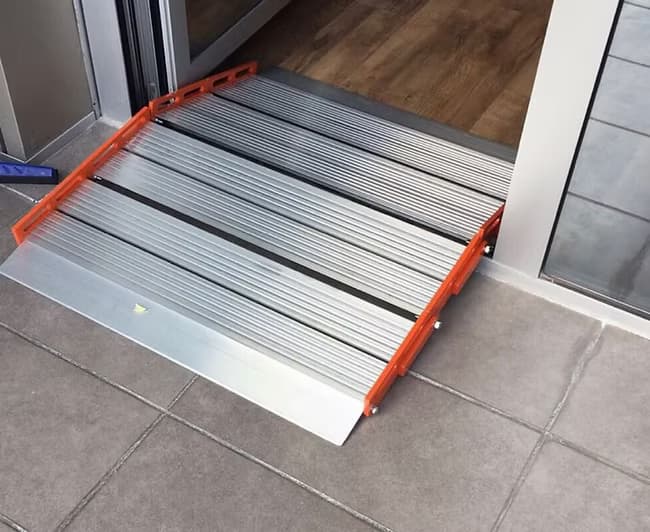

Instant Deployment, No Installation Required
MIOR ROLL requires zero fixing, drilling, or permanent modification. Simply unroll at the location, position the top approach plate, and it's ready for use in seconds. Ideal for temporary events, residential access, heritage buildings, and situations where drilling is prohibited.
- Residential and commercial entrances
- Temporary accessibility at schools, events and exhibitions
- Vehicle loading for wheelchairs and light cargo
- Historical buildings without drilling permissions
Technical Specifications
MIOR ROLL — Modular roll-up wheelchair ramp for temporary access without fixing or drilling
capacity
400 kg
material
6082-T6 Aluminium
weightPerMeter
~8.2 kg/m
sideBorders
8 cm outer / 5.5 cm inner
width
Multiple widths available
length
Modular — 20 cm sections
type
Roll-up modular
usage
Indoor & Outdoor
Series manufacturing and deliveries are planned for 2026. Expected lead times are approximately 4–8 weeks depending on configuration and order volume. Misuse, overloading, or incorrect installation are not covered by warranty.
